Mast
Mast of Svartberget



geology map

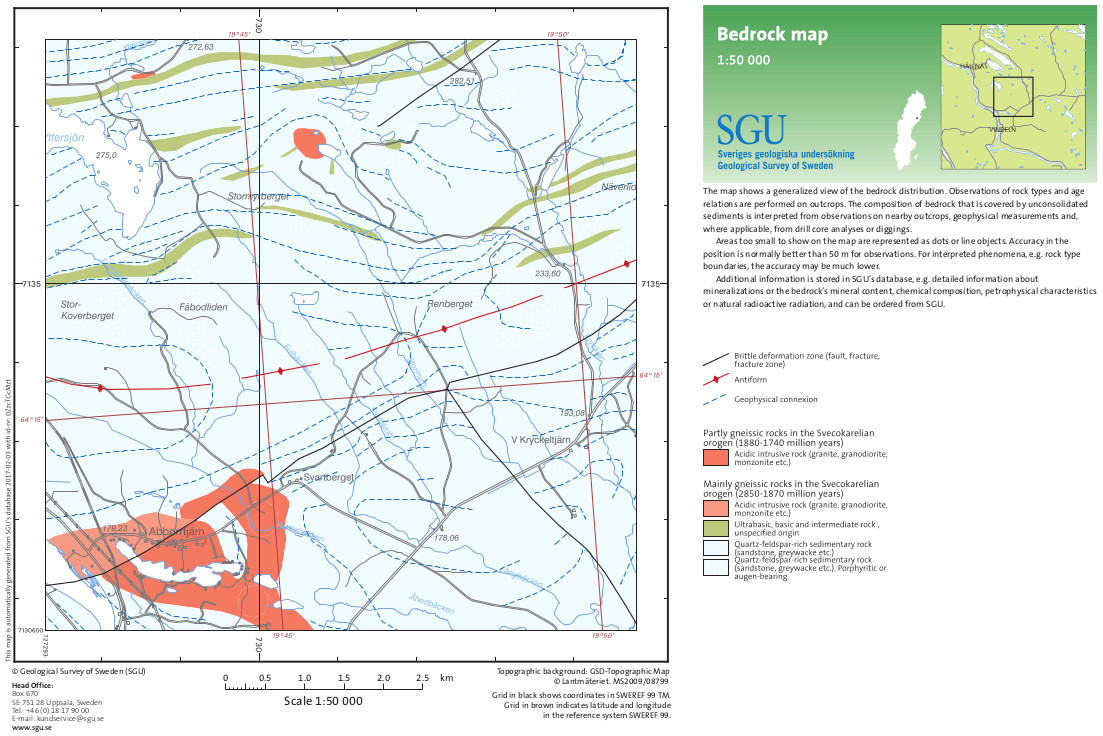

Geological map (1:50'000) of the area around the tower. The tower is located in the center of the map. The map is generated with the map generator of the Geological Survey of Sweden (SGU)



Footprint

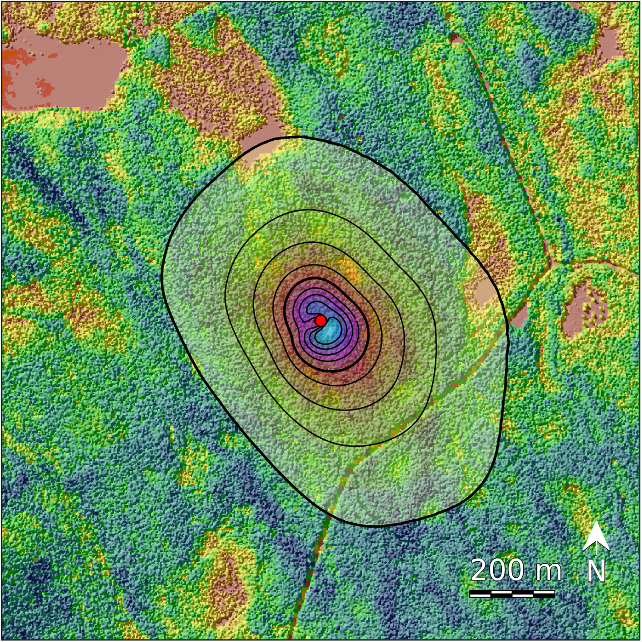

Where does the air come from that is measured at 32.5 m height at the tower? Footprint area for July 2014 in Svartberget. Each contour line adds 10% contribution starting at the tower (red dot); the background map is an illustration of the vegetation height; Footprint model FFP (Kljun et al. 2015).



Climat diagram

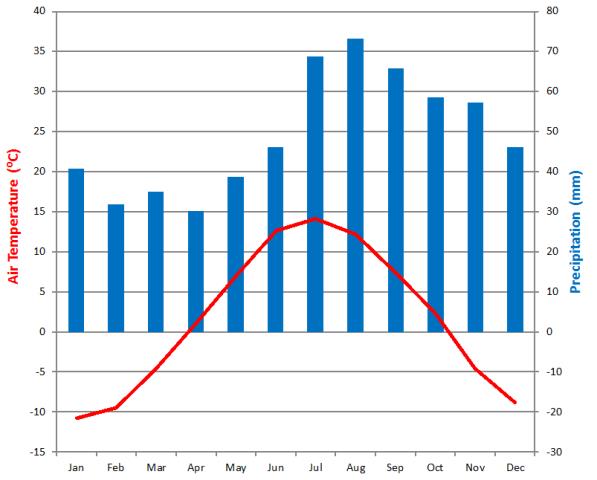

Climate diagram Vindeln (1961-1990, SMHI station Vindeln). The diagram displays monthly averages for temperature and precipitation. When the precipitation curve undercuts the temperature curve, this indicates dry season. When the precipitation curve exceeds the temperature curve, this indicates moist season.



Soil map

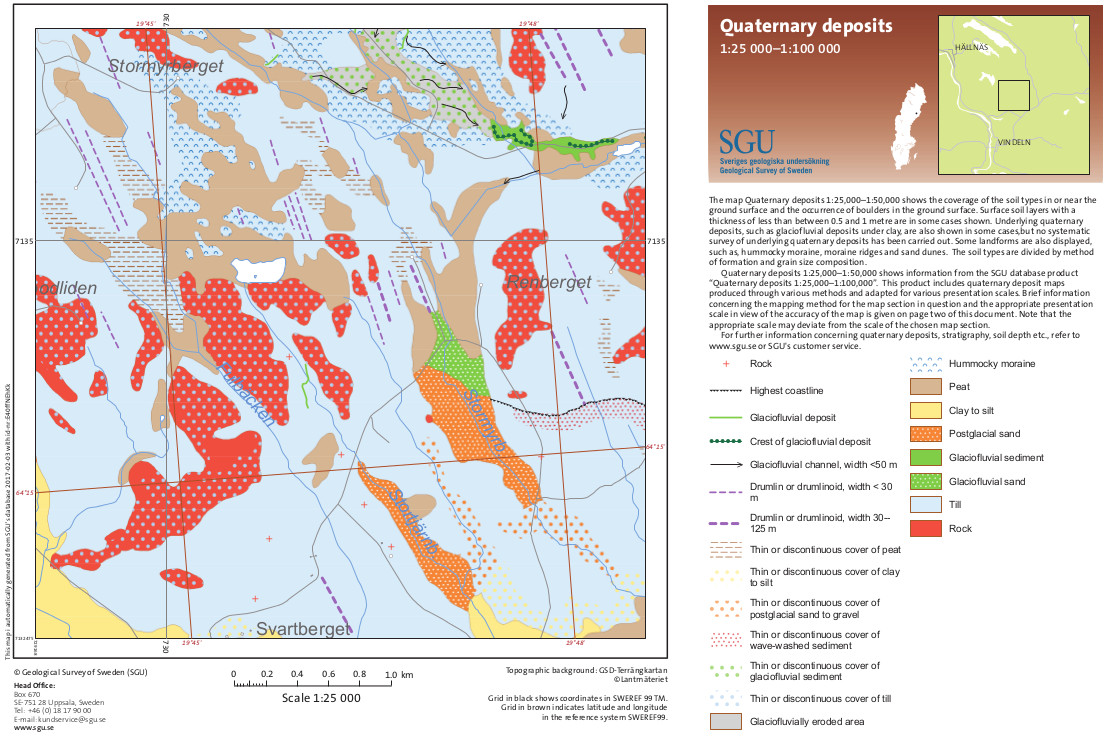

Soil map (1:25'000) of the area around the tower. The tower is located in the center of the map. The map is generated with the map generator of the Geological Survey of Sweden (SGU)



Wind rose

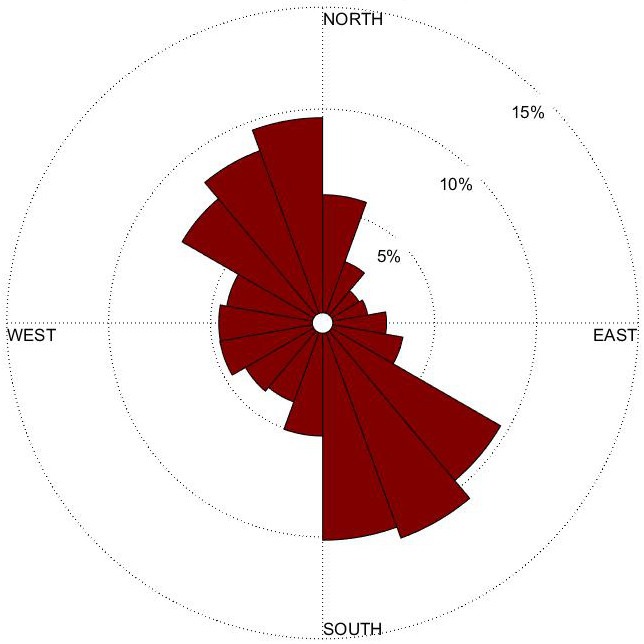

Wind rose Svartberget. Click to enlarge. Data from 2014-01-01 until 2016-11-20 measured with a sonic anemometer
